Case packer
Case packer
Equipment number : 4752

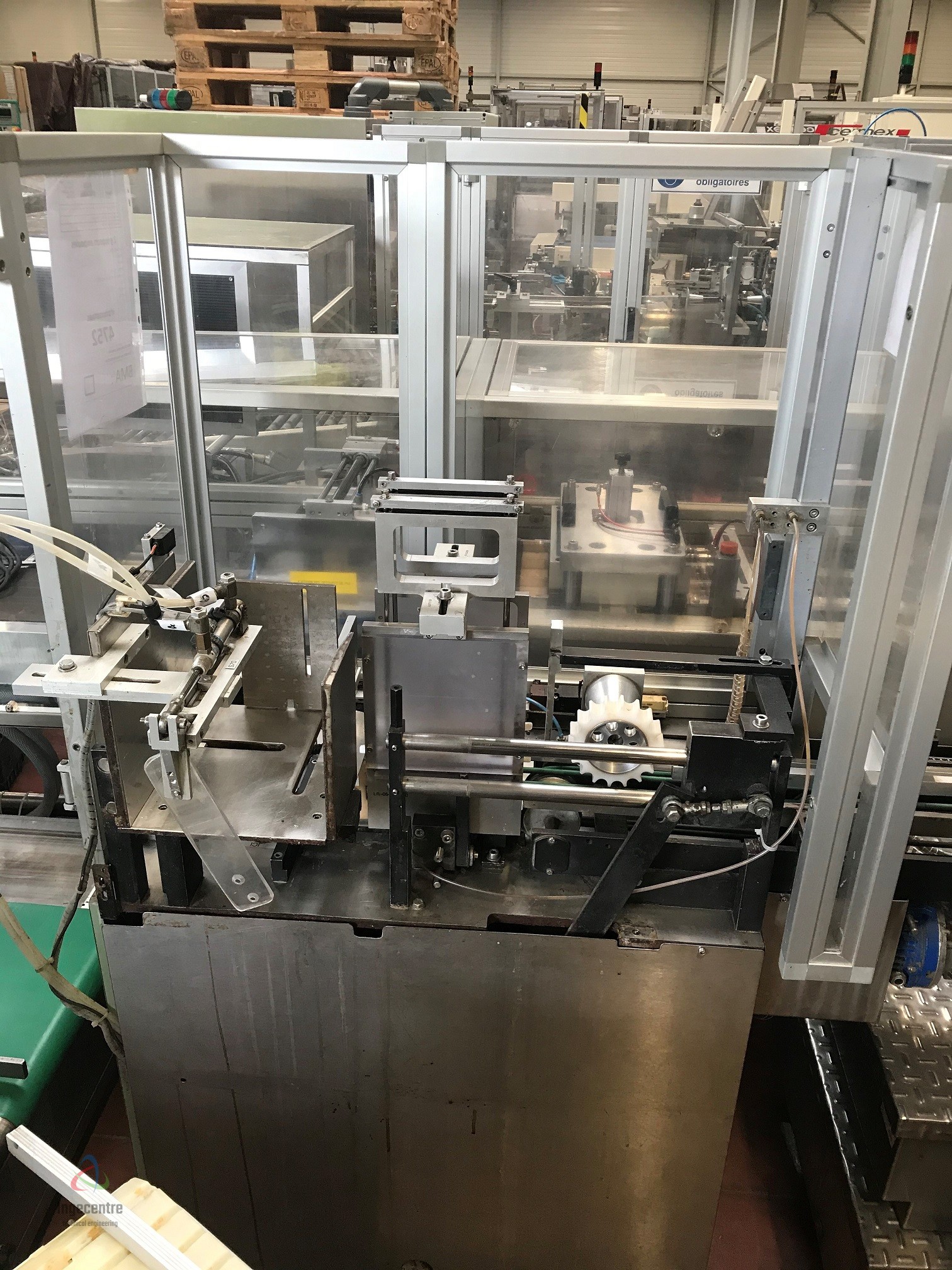

Case packer

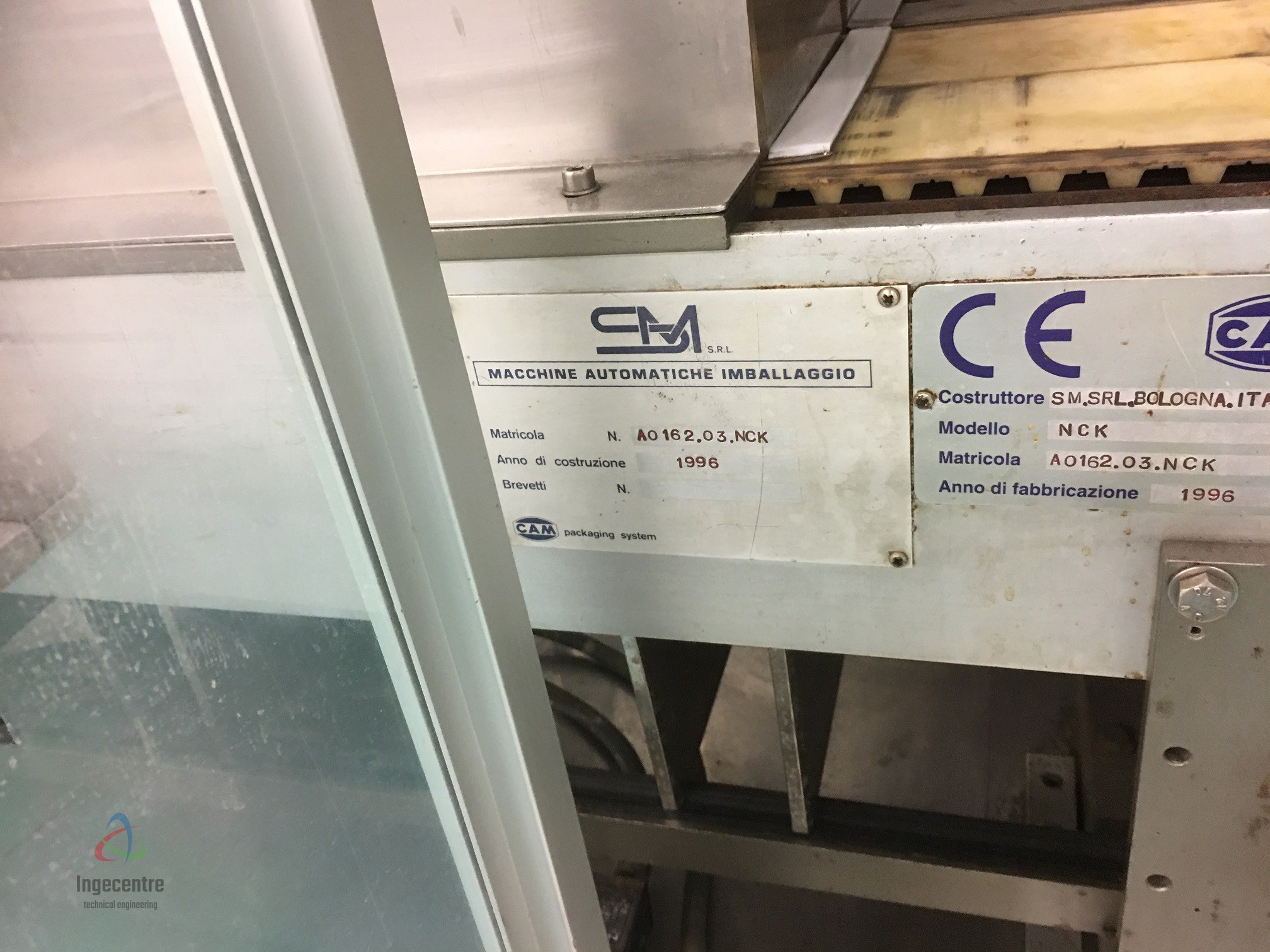

Manufacturer: CAM
Model: NCK
Year: 1996
Use: packing stackings of racks (by 5 or 10)

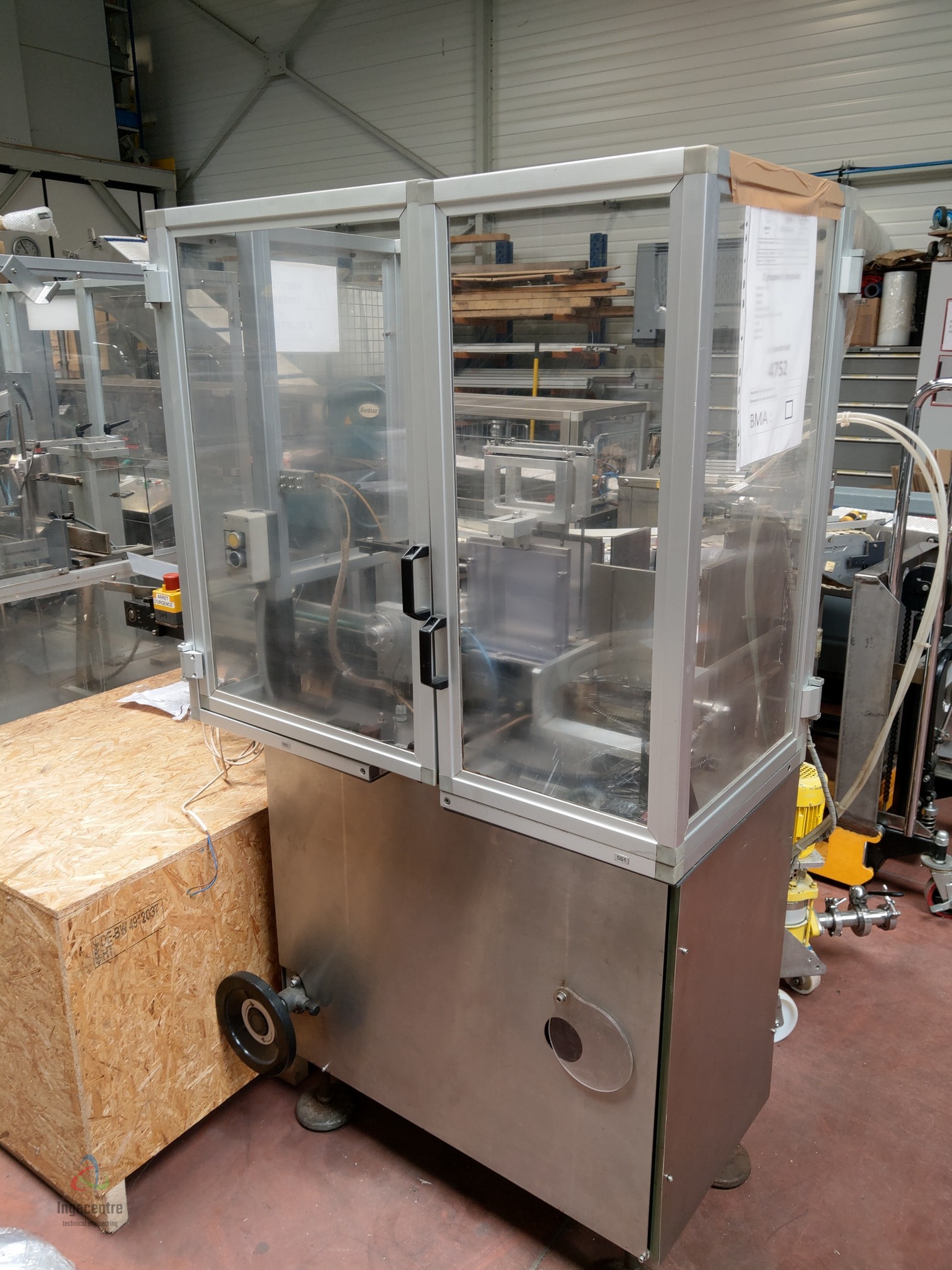

Two modules: grouper of racks and case packing
Speed: max 12 boxes/minute

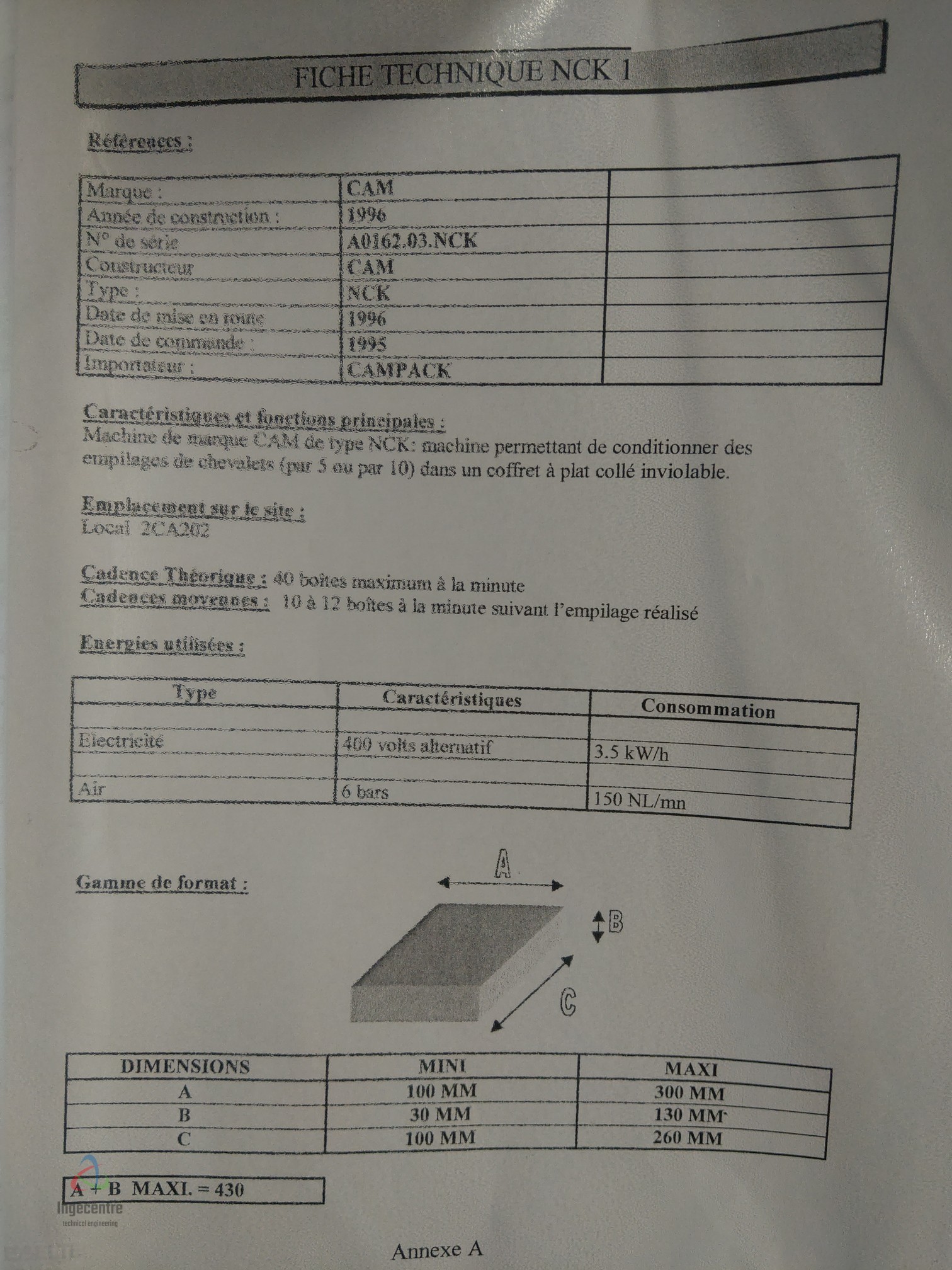

Format range:
- A: 100 – 300 mm
- B: 30 – 130 mm
- C: 100 – 260 mm
- A + B maxi: 430 mm
Installed format:

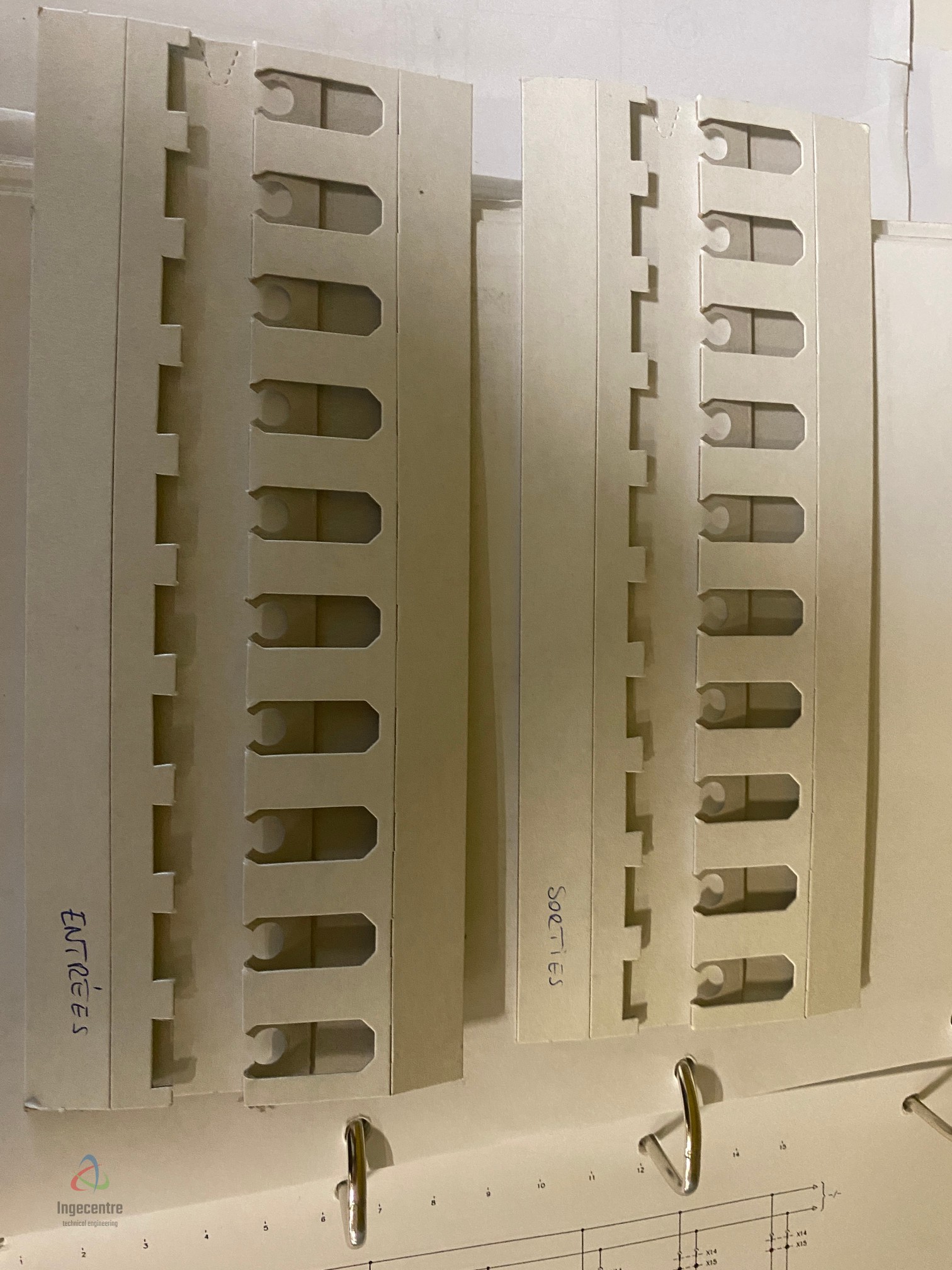

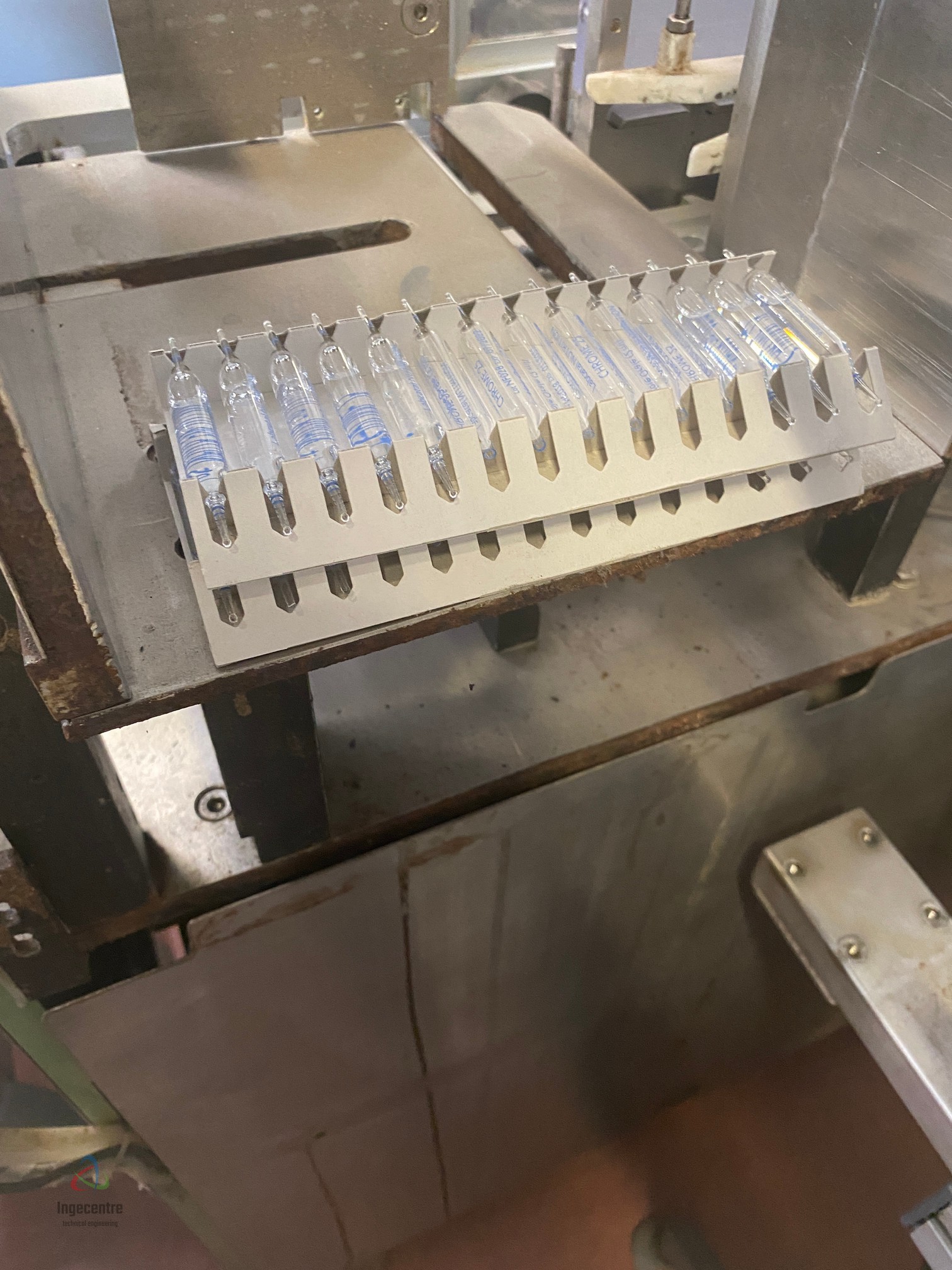

- Rack 220 x 90 mm
- Case: see pictures

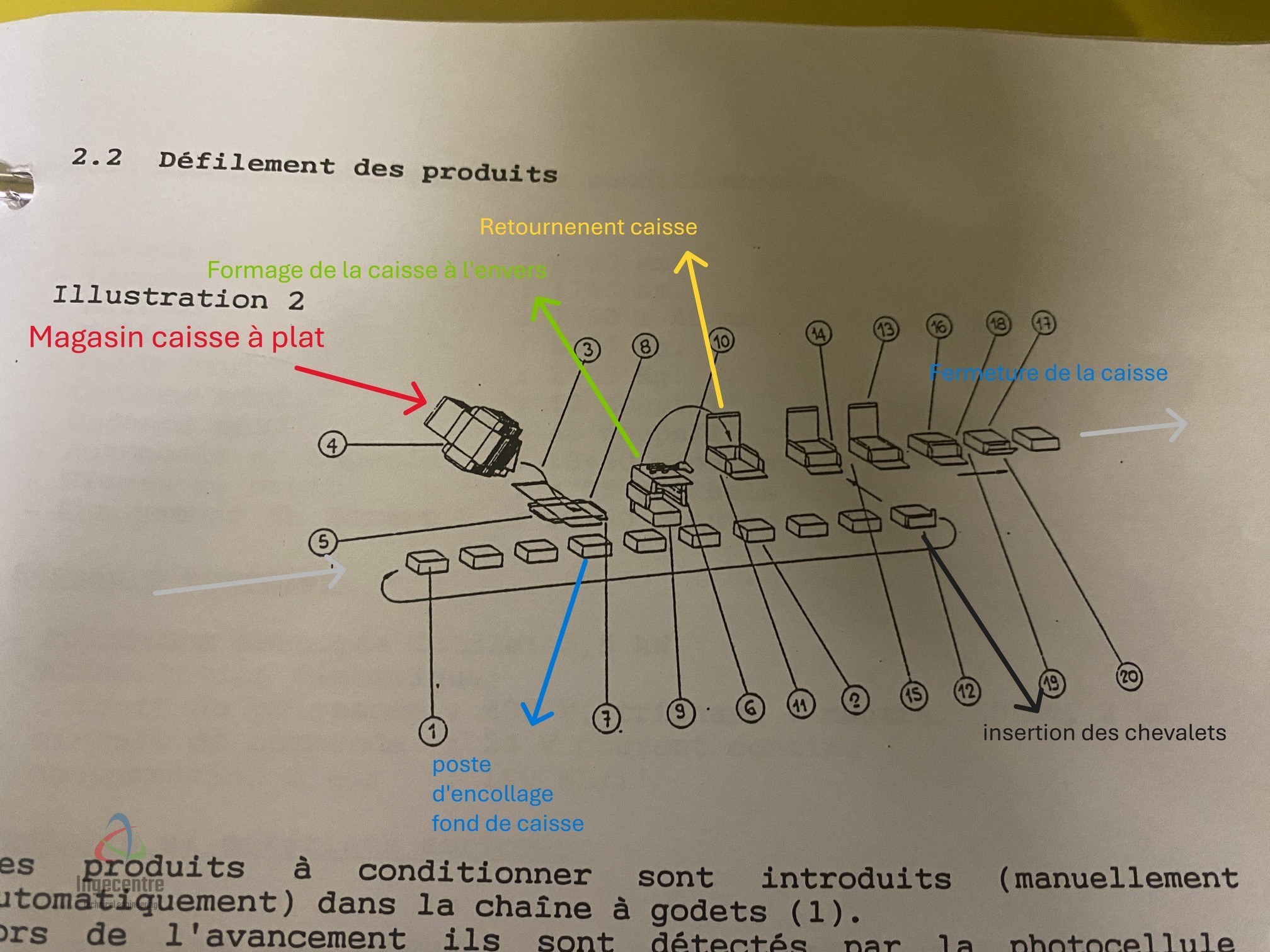

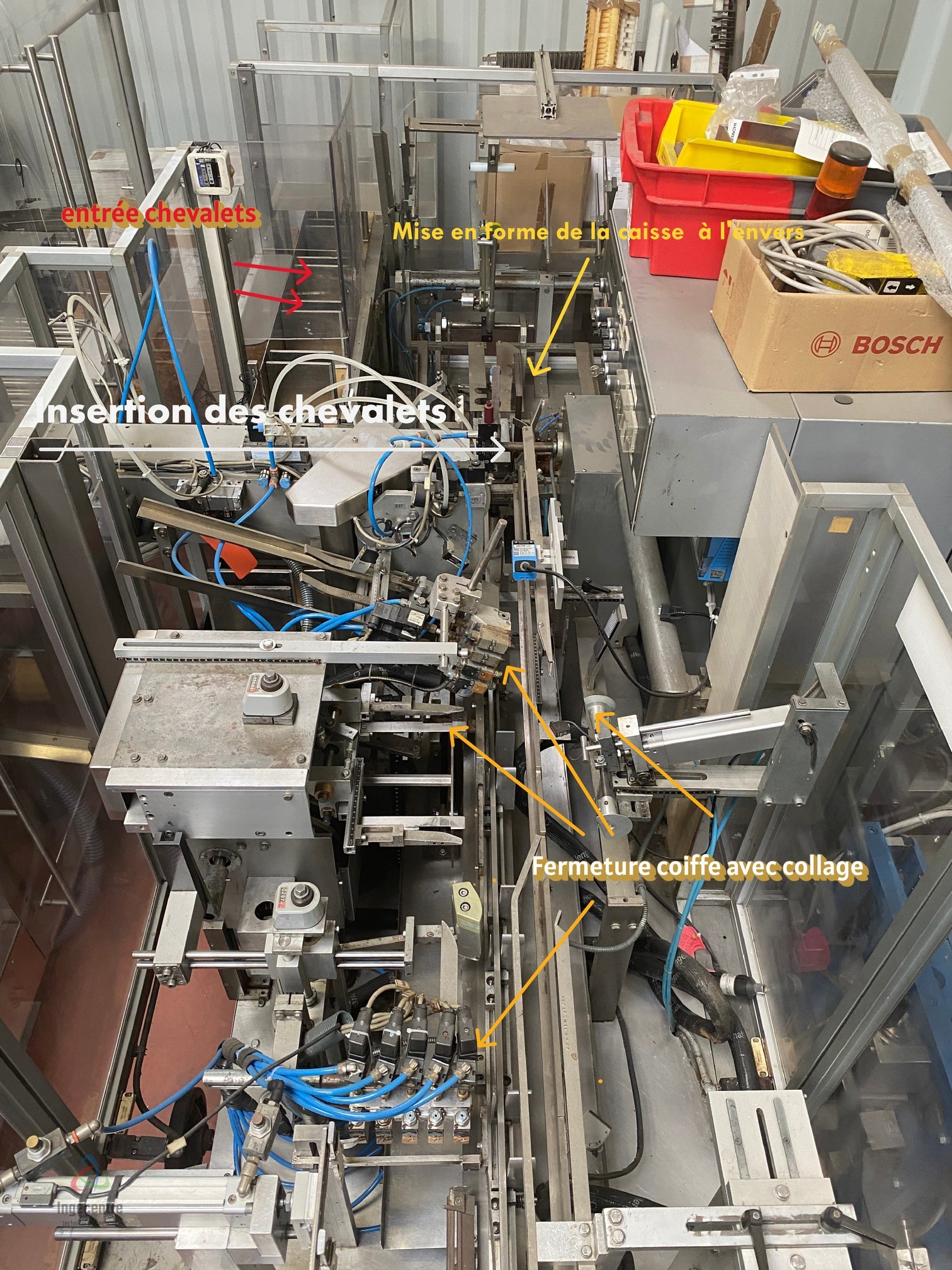

Description of functioning:
A – Grouper of racks of ampoules
- Reception of the racks on the conveyor

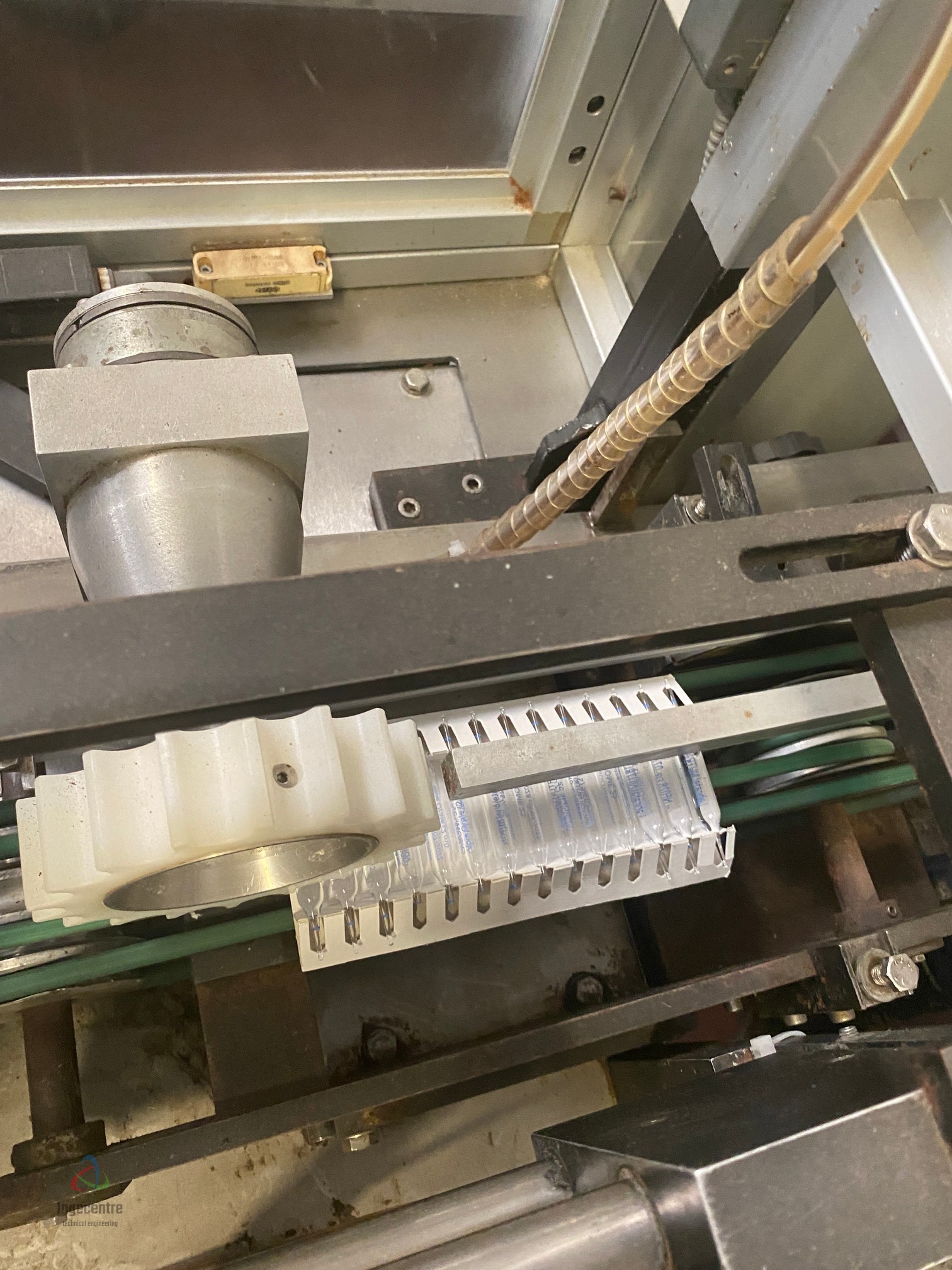

- Stacking x racks
- Transfer of the pile of racks towards the case packer

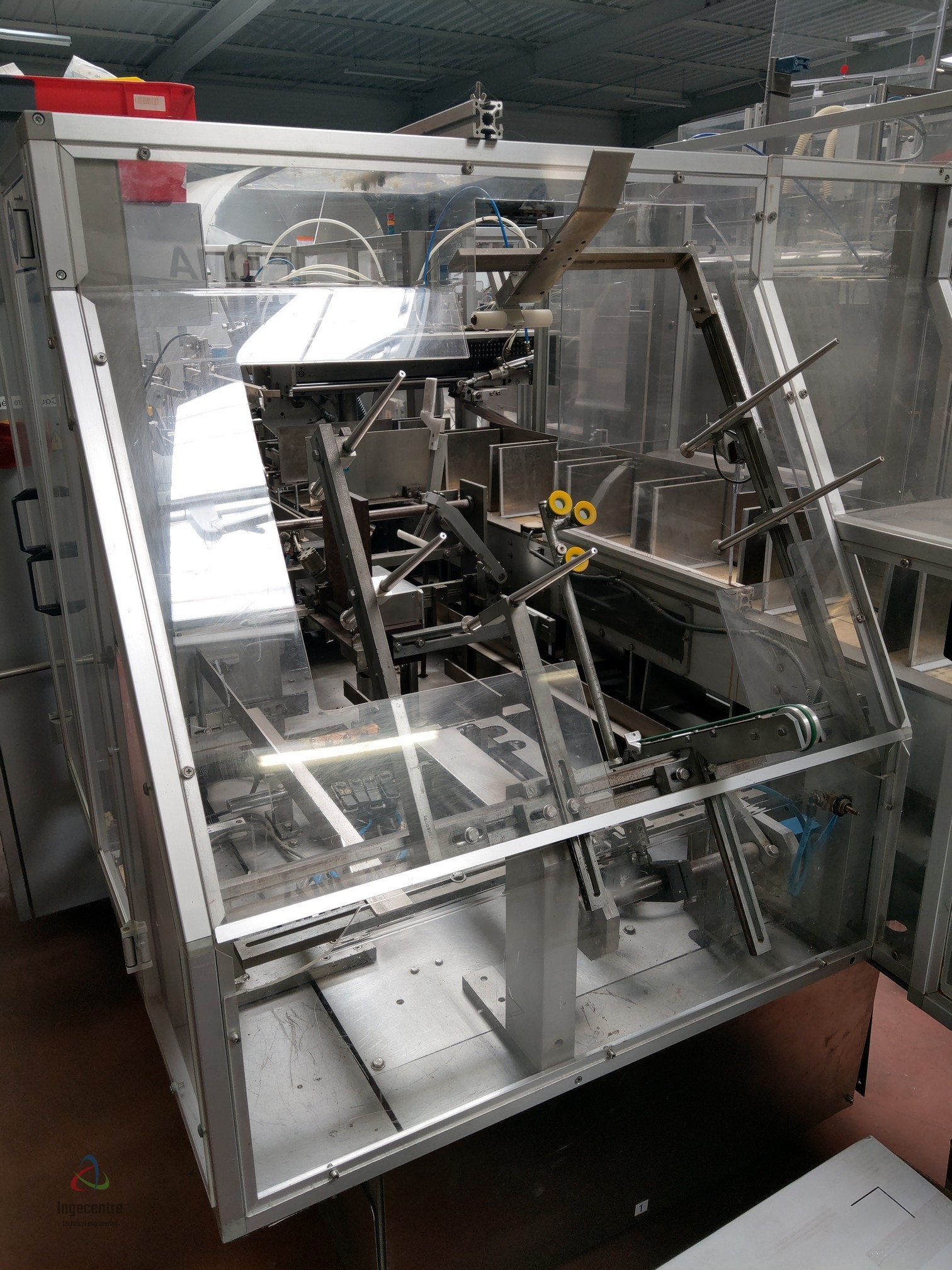

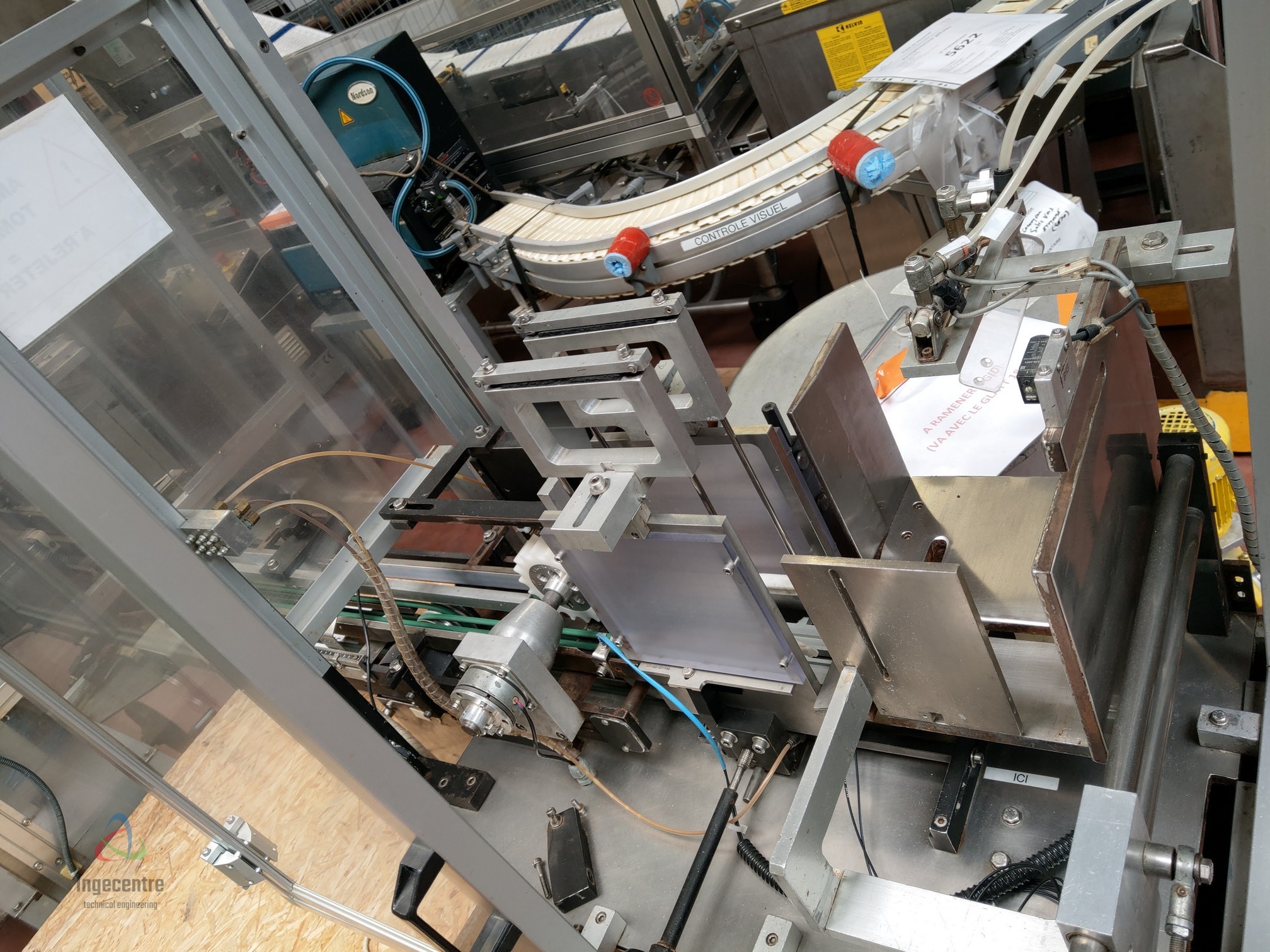

B – Case packer for racks

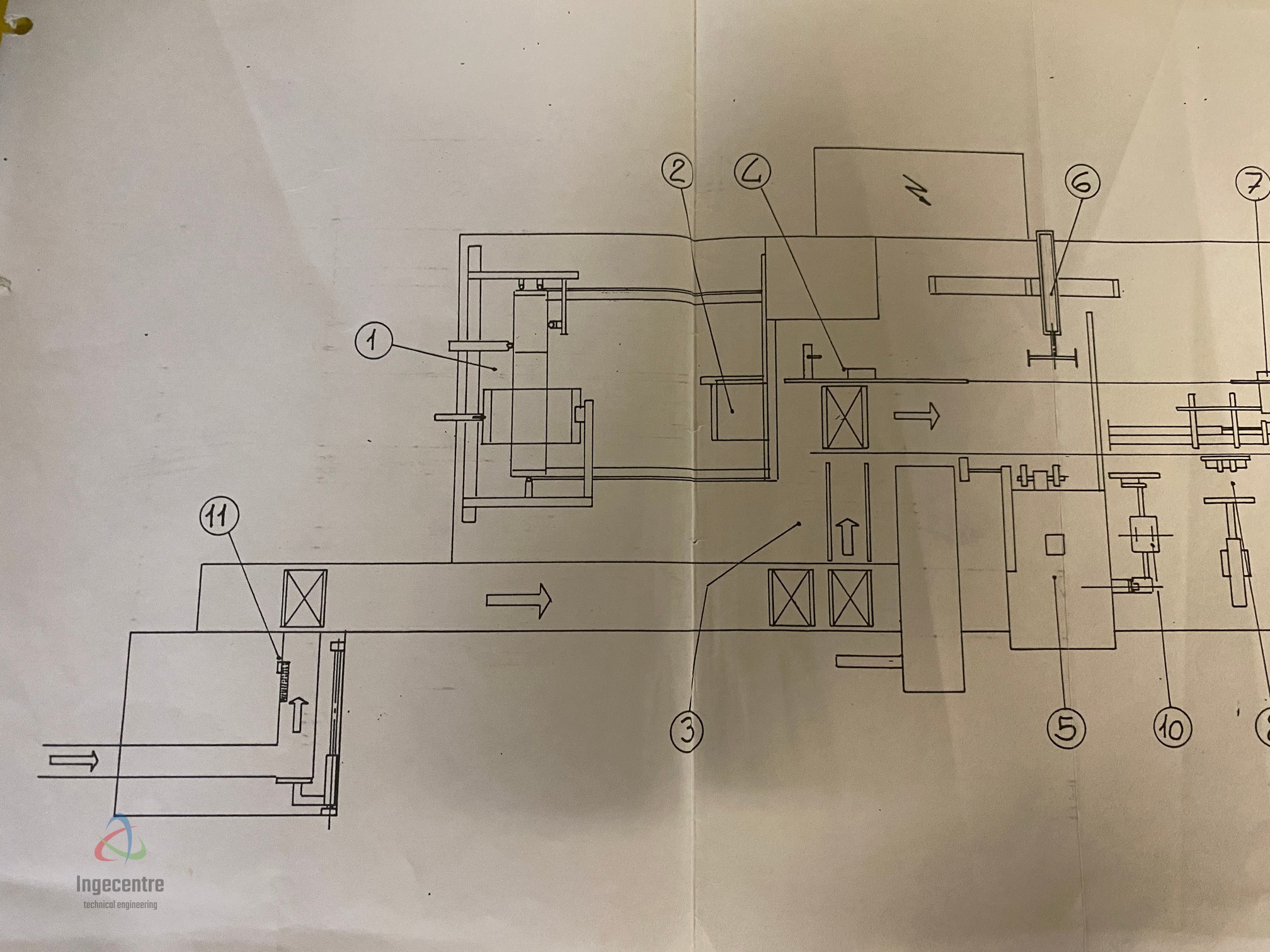

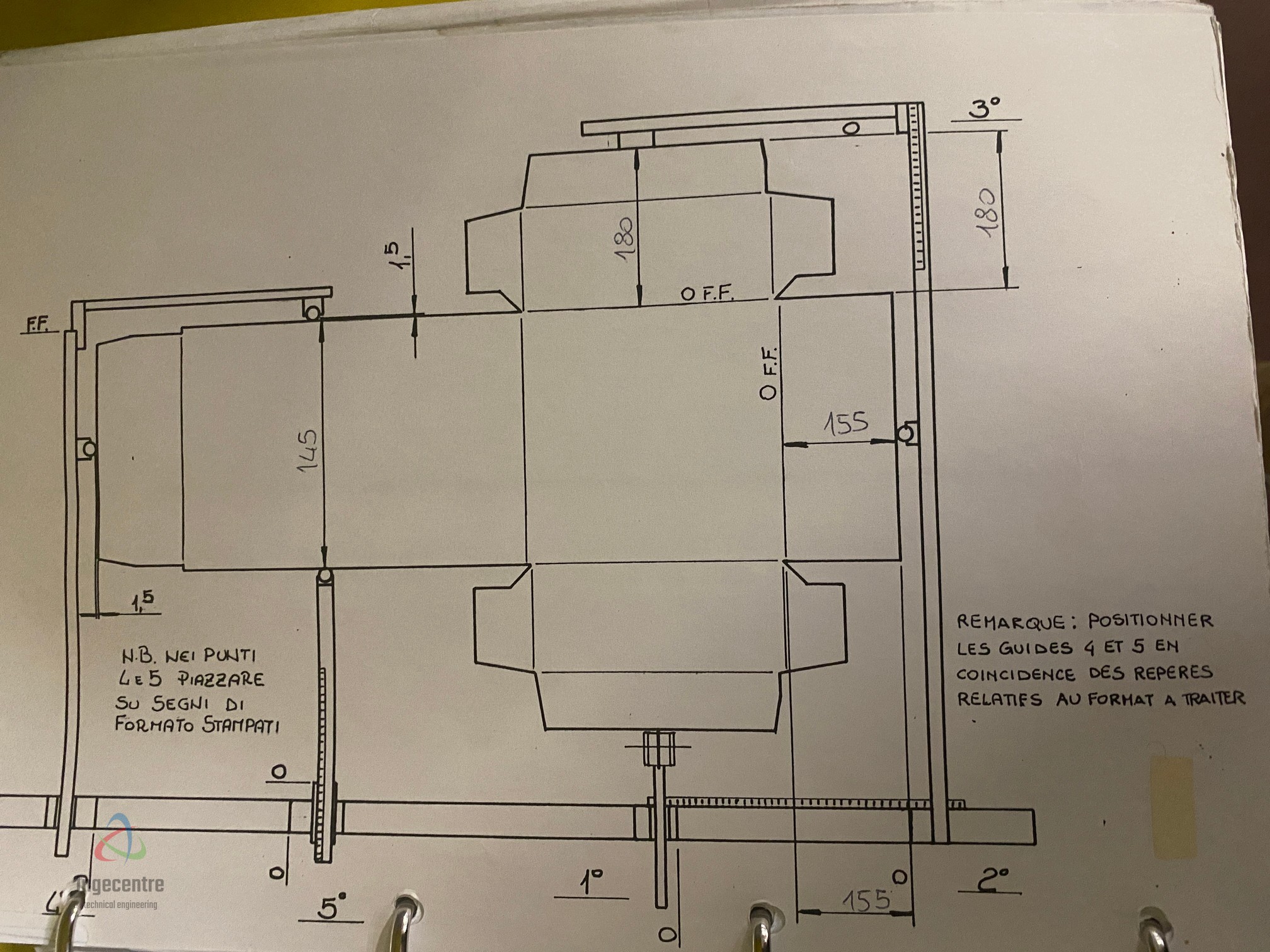

- Shaping “specific” cases, upside down. See plan in annex.
- Turning cases, with holding system at opening
- Loading the racks into the cases
- Closing the cases, by glueing device
- Outfeed of the closed cases.

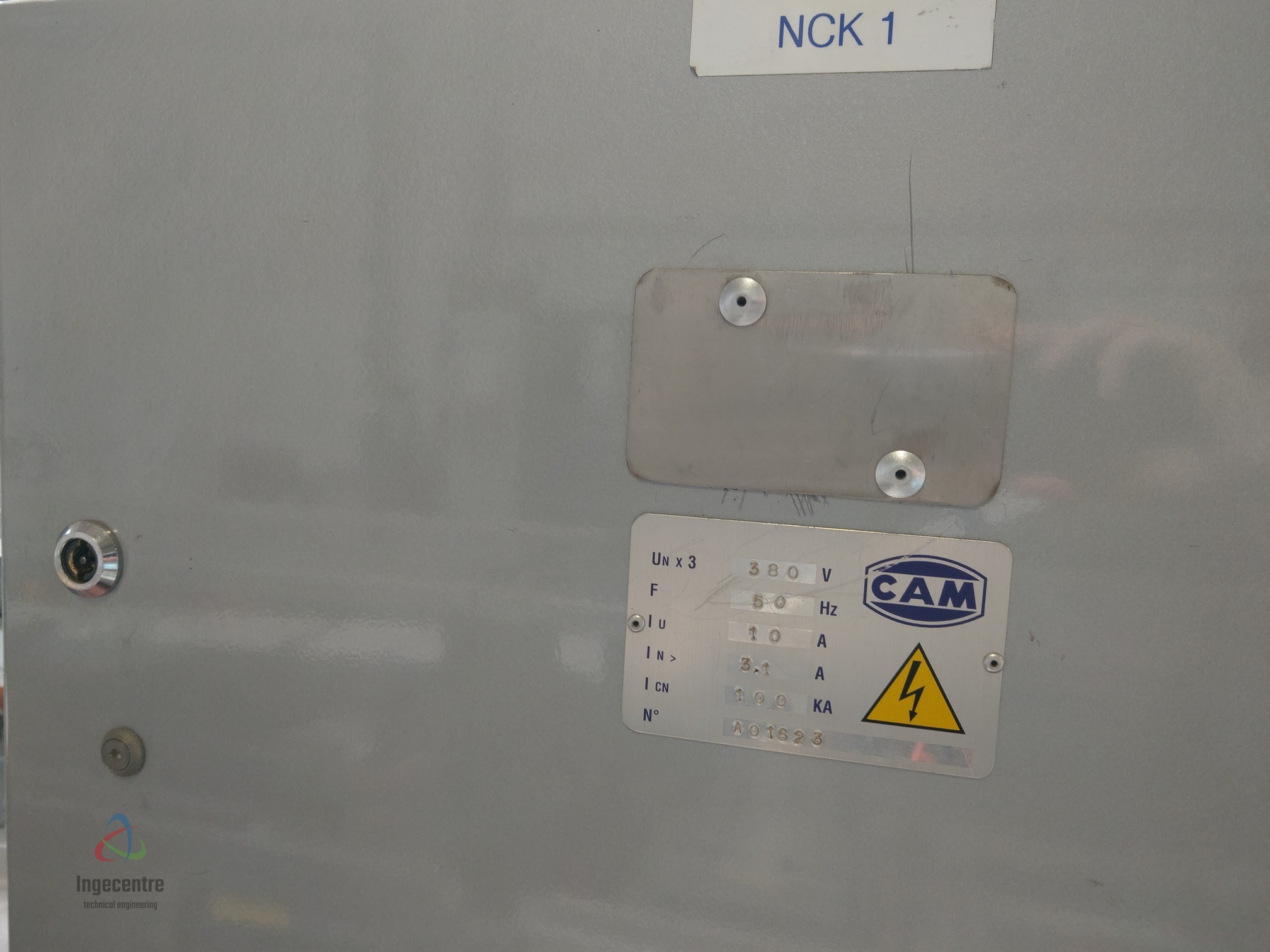

Power supply: 380 V / 50 Hz / 10 A / 3,5 kW/h / 6 bar

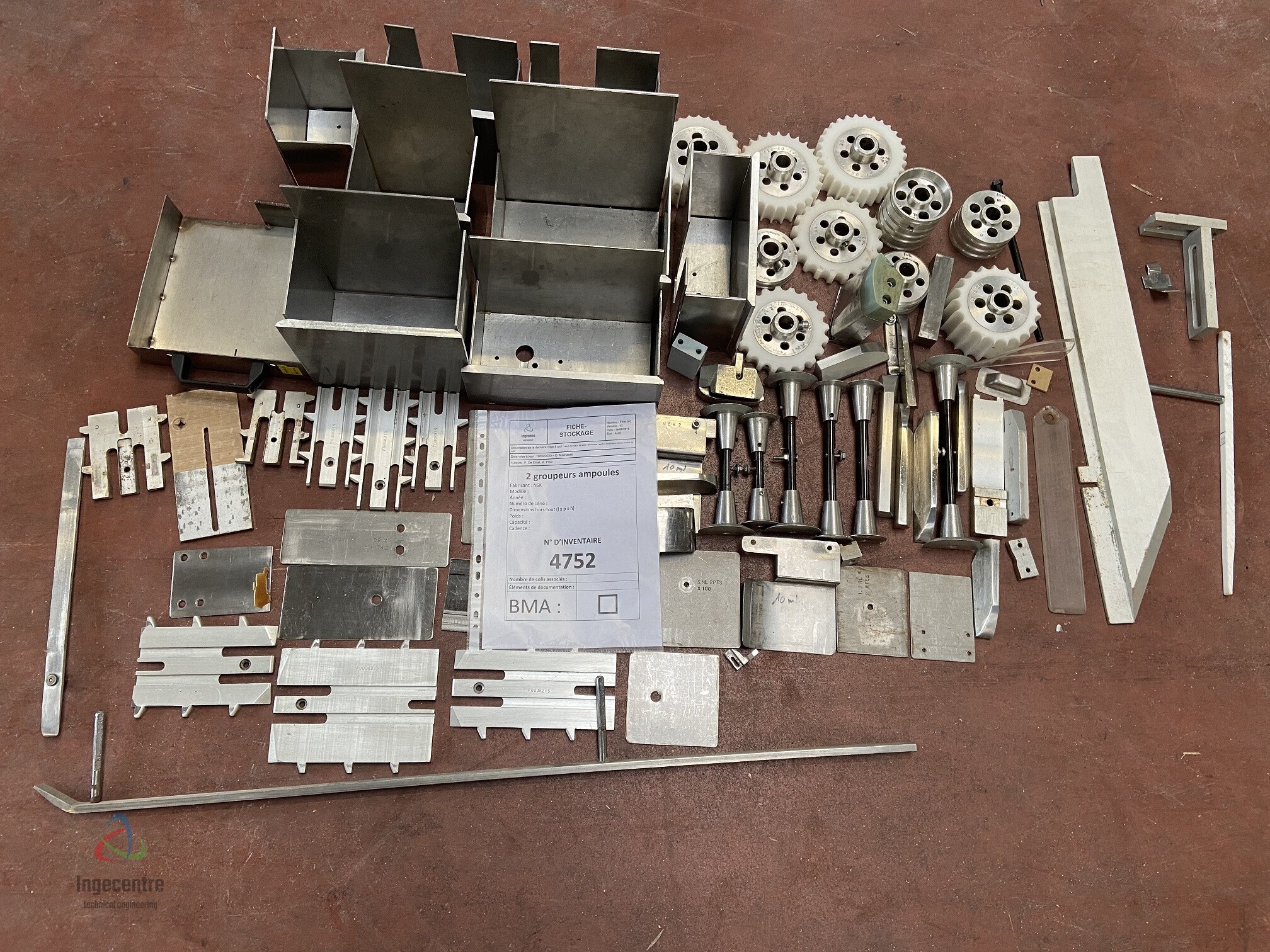

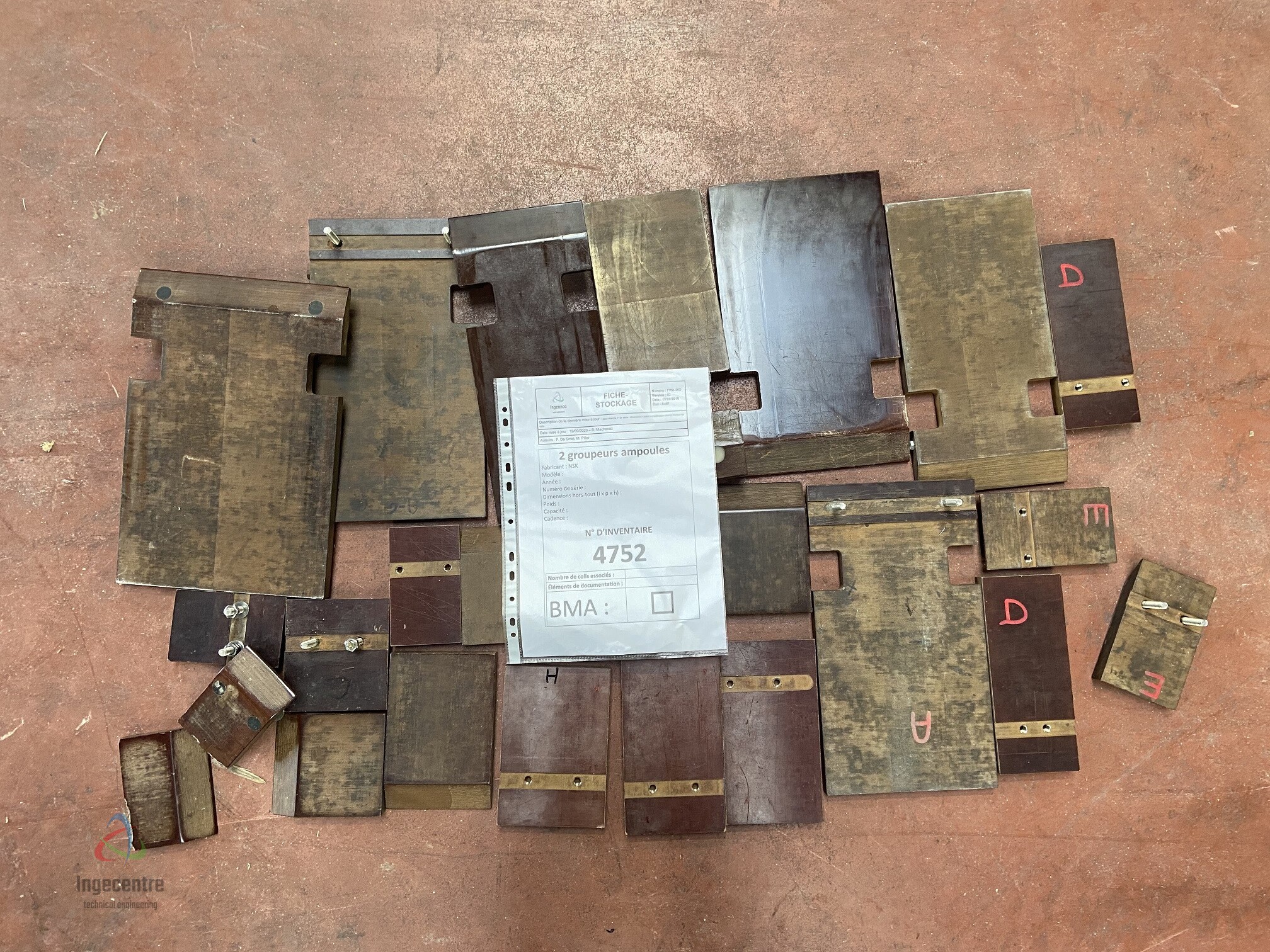

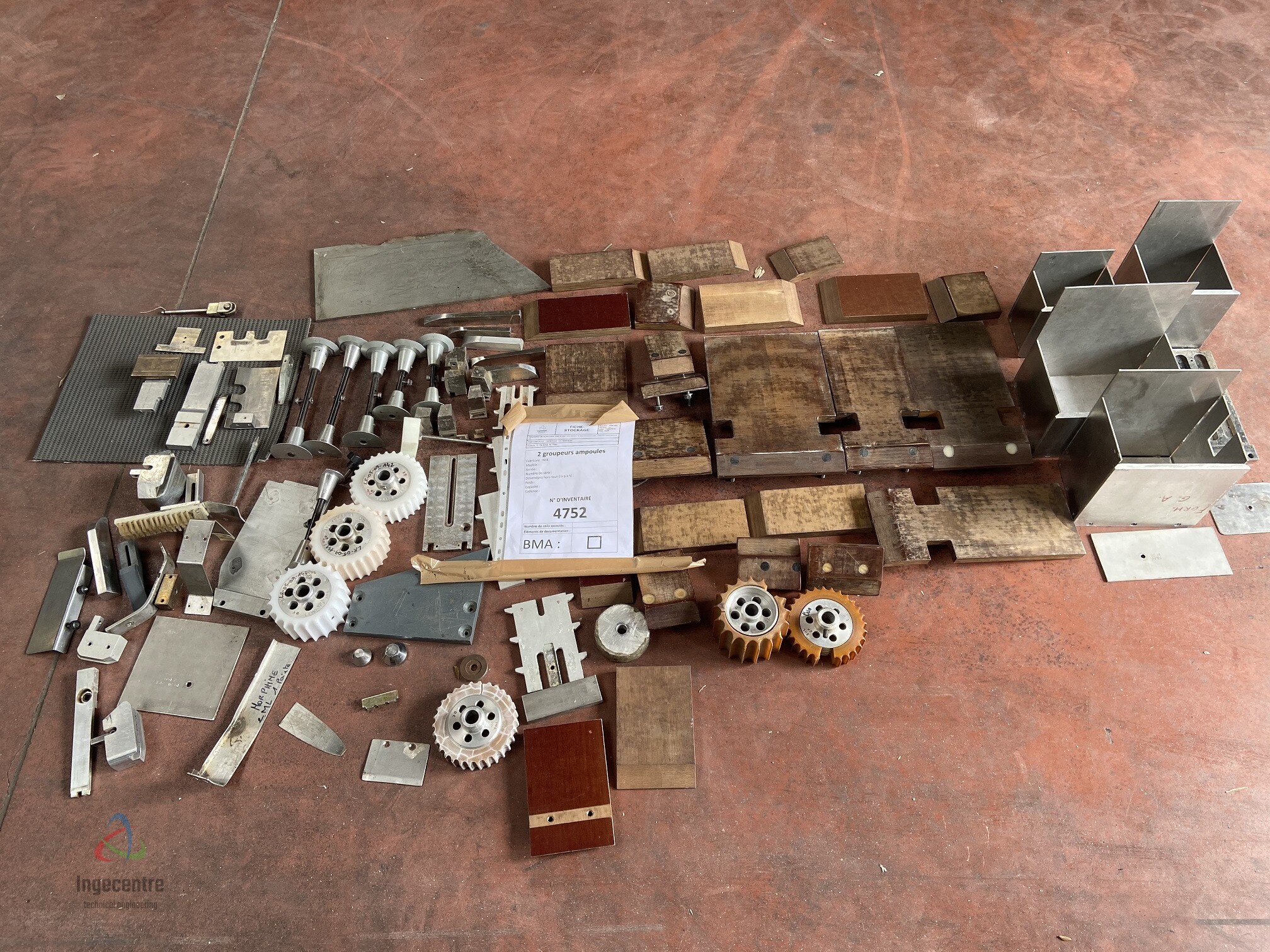

Lot of spare parts
Technical documentation: available
Incoterm: FCA
