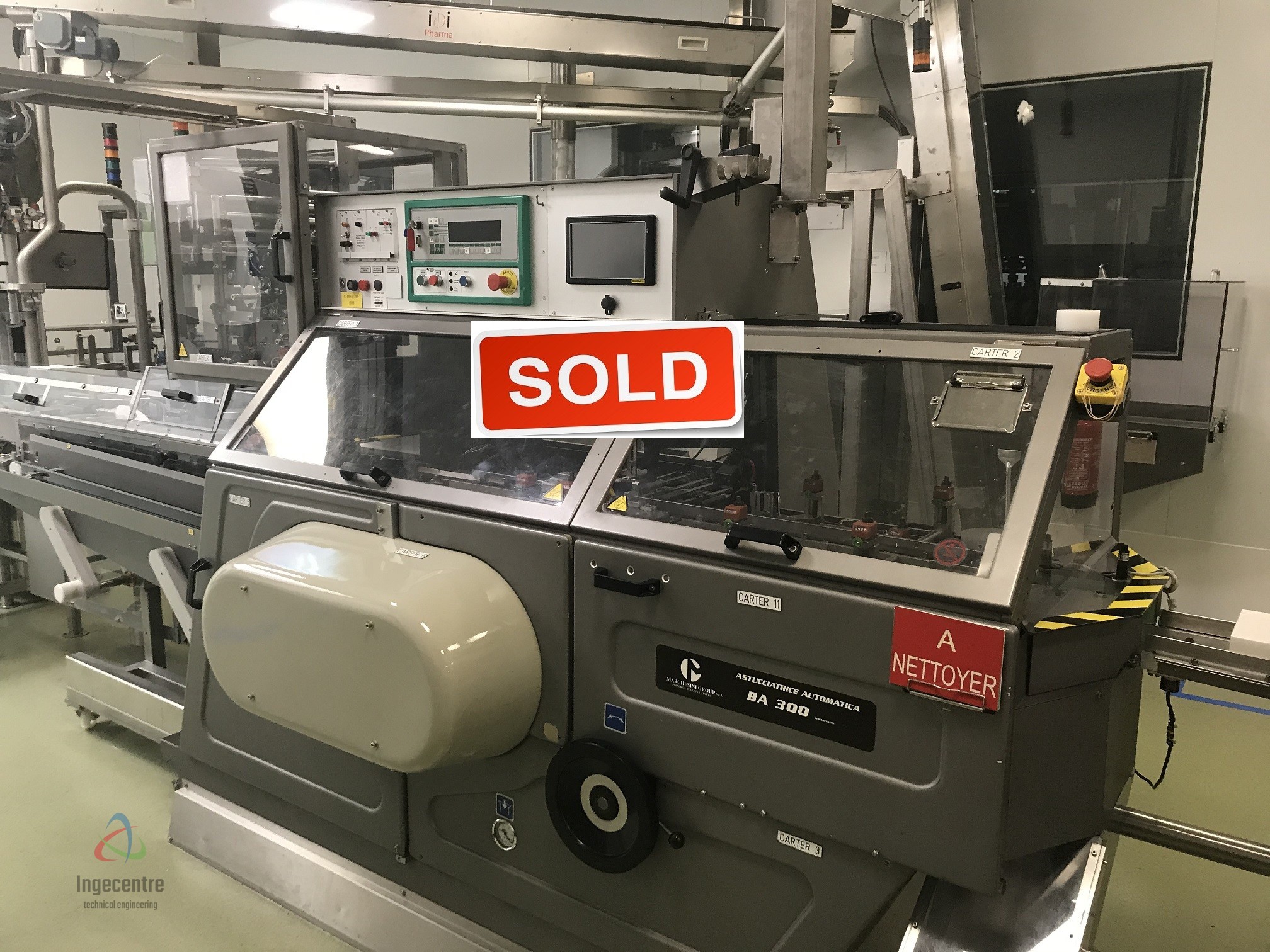

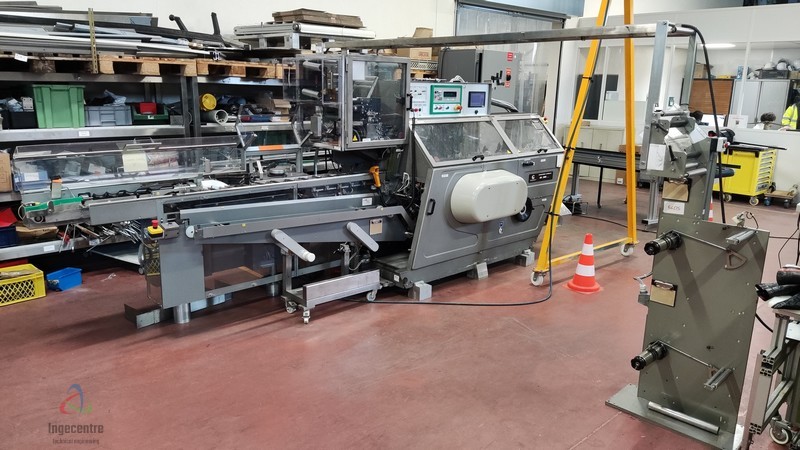

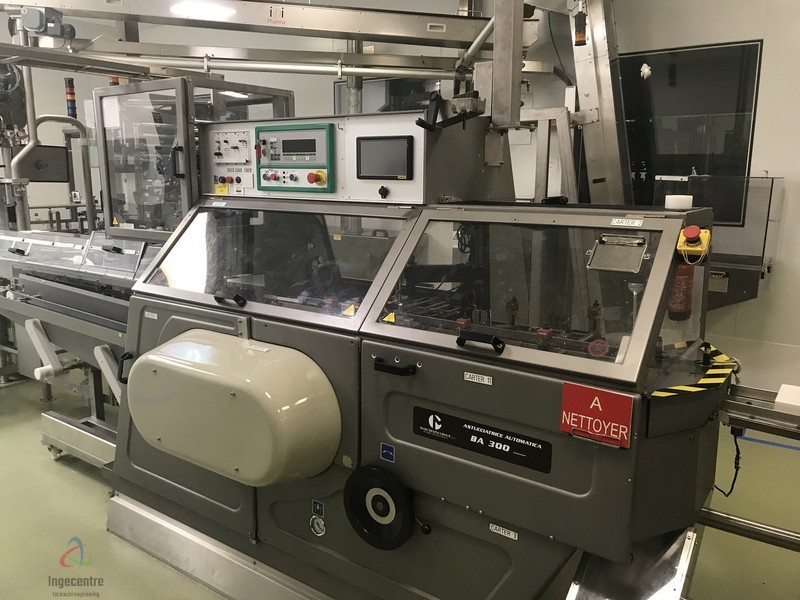

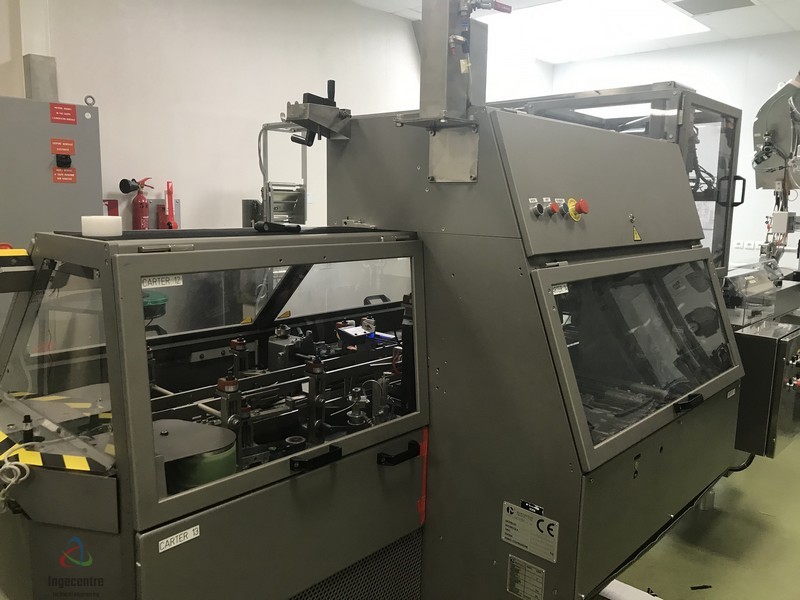

Cartoner

Cartoner

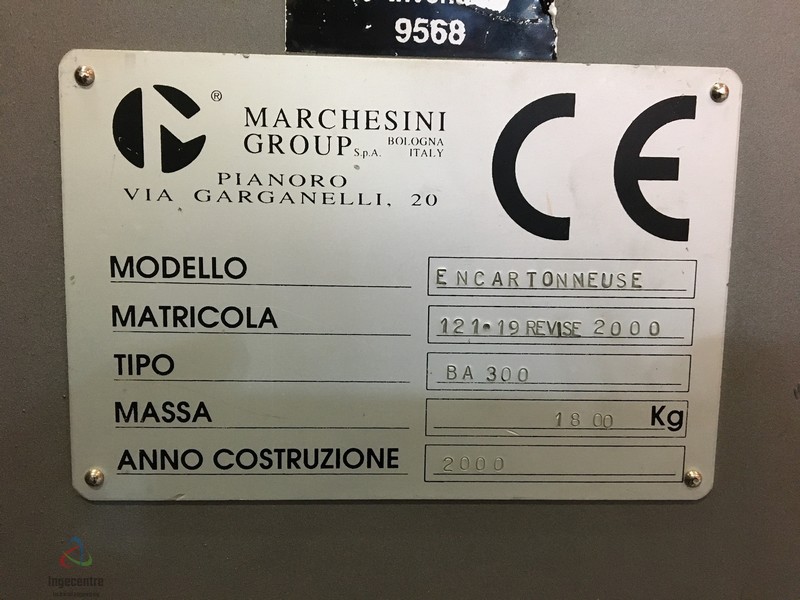

Manufacturer: Marchesini

Model: BA300

Year: 2000 – refurbished by Mipco in 2022

s/n: 121.19 REVISE 2000

For vials

Cartons’ format:

A – 25 – 100 mm / B – 13 – 70 mm / H – 78 – 200 mm

Max speed: approx. 300 cartons/min

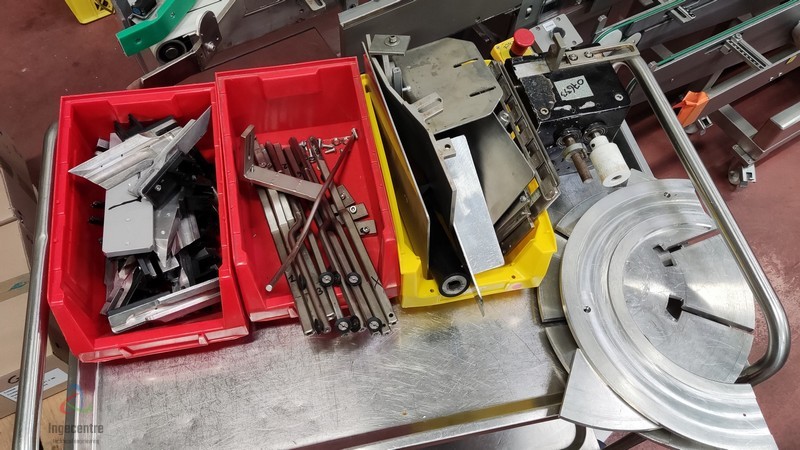

Formats:

Screw for Ø 27 vial, screw for Ø 30 vial, screw for Ø 32 vial, screw for Ø 75 vial

Actual format of caps: diameter = 32mm & h = 23mm

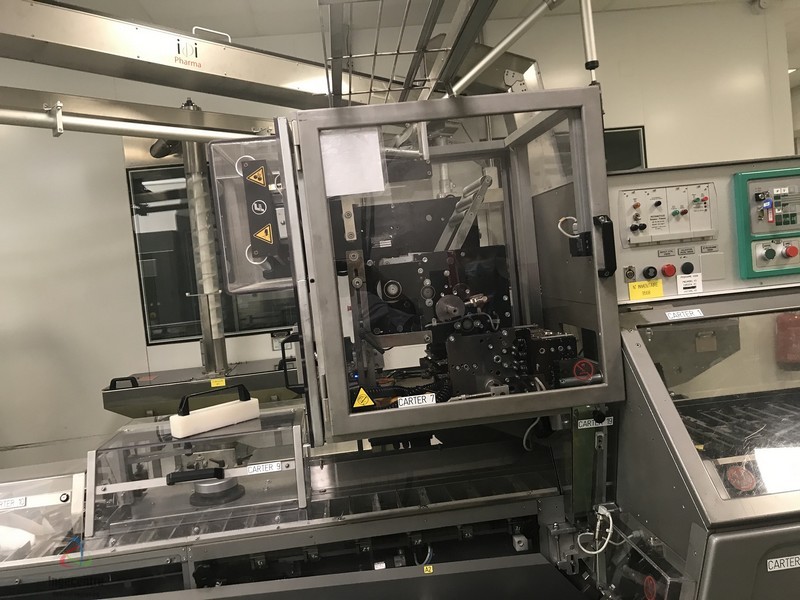

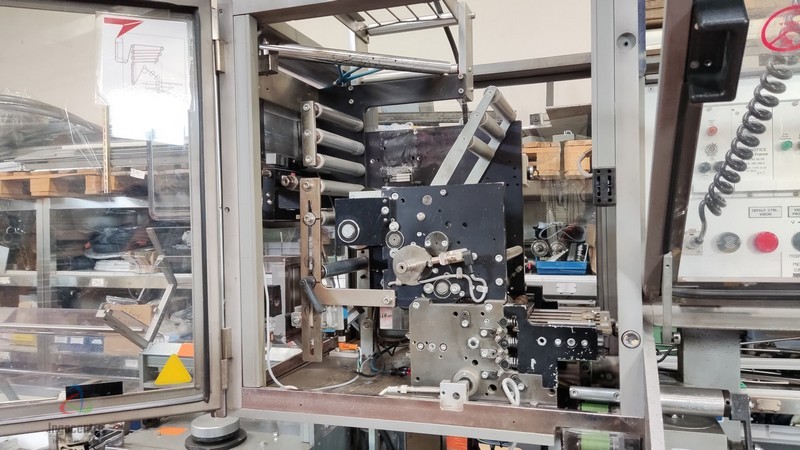

With leaflet feeder (rolls) ROTANOTICE GUK R21/760

• format: 60x105mm / Max. format: 210x315mm
• Leaflet dispenser:
  • Mandrel length: 200mm
  • Mandrel diameter: 70-80mm
  • Overall dimensions (LxWxH): 200x500x2000mm

As an option, it is possible to integrate a dosing cups’ feeding system (réf 4830), as follow:

• Caps elevator:
  • Manufacturer: IDI Pharma
  • S7-1200 PLC SIEMENS
  • Belt width: 150mm
  • Hopper dimensions (LxWxH): 650x565x400mm
  • Hopper equipped with a housing
  • Overall dimensions (LxWxH): 1750x600x2970mm
• Caps transfer conveyor between the elevator and distribution bowl:
  • Belt conveyor width: 200mm
  • Overall dimensions (LxWxH): 4100x280x190mm
• Distribution bowl:
  • Manufacturer: ZALKIN
  • Type: DISTRIBUTEUR CA12
  • Year: 2016
  • s/n: 90808
  • Bowl diameter: 745mm
  • On-the-fly cap dispensing system IDI Pharma
  • Modular chain vials conveyor width: 80mm (40 to 165mm)
  • Overall dimensions (LxWxH): 1250x950x1790mm

Overall dimensions of case conveyor (LxWxH): 1900x260x850mm

Overall dimensions of electrical cabinet (LxWxH): 800x600x2050mm

Overall dimensions of the cartoner (LxWxH): 5120x1700x1930mm
